SOAP SAPONIFICATION AND VACUUM DRYING SYSTEM

Introduction

Soap Saponification and Vacuum Drying System is making soap noodles through saponification of animal and plant oil and alkali. Saponification gets high temperature liquid soap base, meanwhile adding glycyrin and additives into soap base.After drying, water is evaporated and liquid soap base turnes to solid soap base and extruded as pelletized soap noodles from pelletizer. Soap noodles are of good quality.

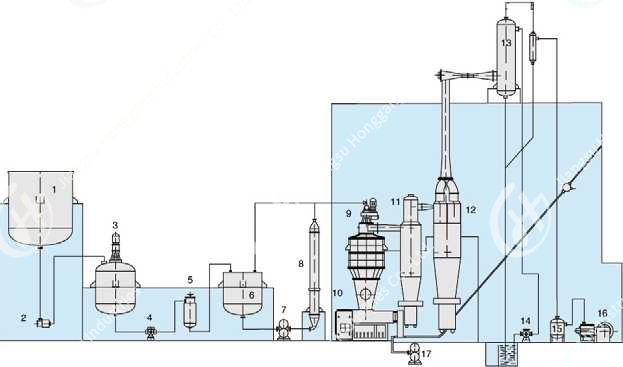

1、 Soap-radicel Cauldron (Soap Base Tank)	2、Coarse Filter
3、 Crutcher(Concoct Cauldron)	4、 Filter Pump
5、 Refining Filter	6、 Soap Inlet Container
7、 Gear Pump	8、 Tubular Heat Exchanger
9、 Vacuum Spray Drier	10、 Pelletizer
11、 1st Cyclone Separator	12、 2nd Cyclone Separator
13、 Barometric Condenser	14、 Water Circulating Pump
15、 Foam Eliminator	16、 Vacuum Pump
17、Soap Pellet Air Blower(Soap Pellet Ventilator)
