Biodiesel oil Separator
Biodiesel is a clean and renewable energy. It is the reborn fuel and excellent substitute of petroleum diesel. Biodiesel is made by ester exchange process which raw material bases on plant oil crops, wild plants and engineering microalgae type aquatic plants fats as well as animal fats, food waste oil, etc. Biodiesel also is a typical "green energy", so develop the bio-diesel has an important strategic significance in continuable economic development, promote alternative energy, reduce environment pressure and control urban air pollution.
Details
Biodiesel is a clean and renewable energy. It is the reborn fuel and excellent substitute of petroleum diesel. Biodiesel is made by ester exchange process which raw material bases on plant oil crops, wild plants and engineering microalgae type aquatic plants fats as well as animal fats, food waste oil, etc. Biodiesel also is a typical "green energy", so develop the bio-diesel has an important strategic significance in continuable economic development, promote alternative energy, reduce environment pressure and control urban air pollution.
Successful applications:

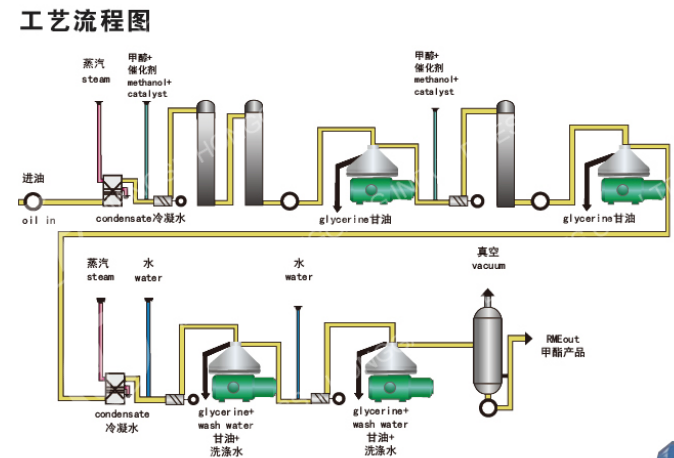

Separation of methylester, glycerin, catalyst, de-soap, methanol Methyl washing Extraction of fatty acids Glycerol desalination.
Features:
High speed, stable operation, fully closed of inlet and outlet system, low noise, good separation,high oil rate, fully automatic control, easy to operate.
Technical Data:
| Model | Treatment Capacity(L/H) | Inlet Pressure(MPa) | Outlet Pressure(MPa) | Motor Power(Kw) | Weight(Kg) | Outline Dimension (mm) |
| DBSY204 | 700-2000 | 0.05 | 0.1-0.25 | 4 | 408 | 810*850*1350 |
| DHSY360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 |
| DHSY470 | 4000-7000 | 0.05 | 0.1-0.3 | 15 | 1880 | 1800*1200*1800 |
| DHSY550 | 6000-15000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1850*1550*2050 |
| DHSY616 | 8000-25000 | 0.05 | 0.1-0.3 | 37 | 3300 | 2050*1700*2300 |
